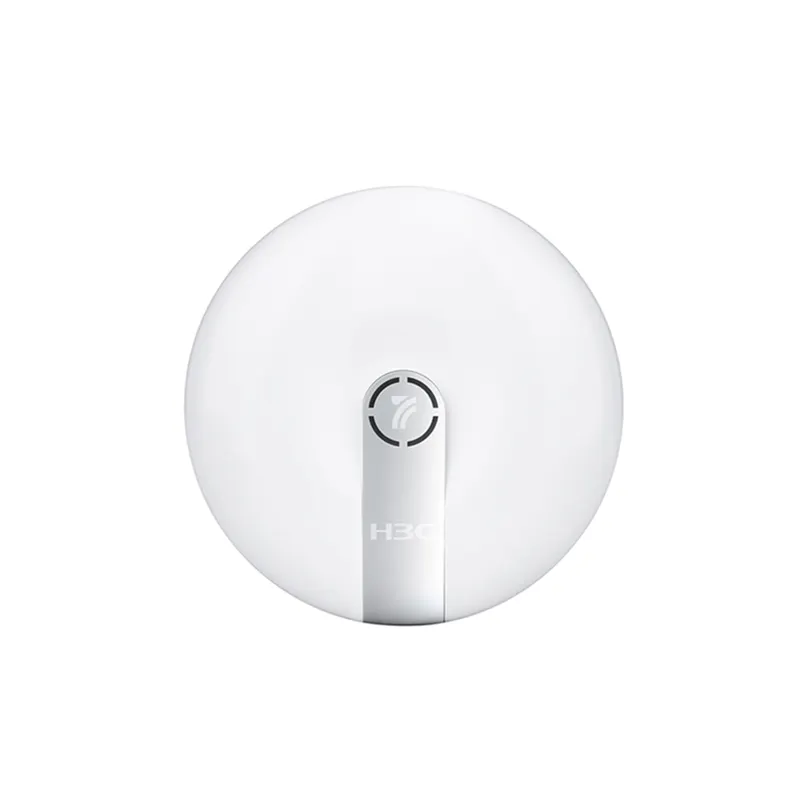

Беспроводная точка доступа (роутер) H3C EWP-WA7130

Беспроводная точка доступа (роутер), H3C, EWP-WA7130, Wi-Fi 7, 802.11a/b/g/n/ac/ax/be, BE 9335, 1 порт 10/100/1000/2.5G RJ45, 1× Management console port (RJ-45), 768 клиентов, PoE+802.3at

• Name: WA7130
• Weight: 0.80kg
• Dimensions (W × D × H): 240 mm × 240 mm × 45.2 mm
• Interface: 1 x 100/1000M/2.5G Ethernet, RJ-45
• Console port: 1 × Management console port (RJ-45)
• PoE input: 1 x 100/1000M/2.5G, 802.3at
• Local power supply: 54V DC
• Antenna Type: Built-in omni-directional antenna
• Antenna Gain: 6GHz peak gain: 5.3dBi5GHz peak gain: 5.7dBi2.4GHz peak gain: 3.2dBiNote: The equivalent antenna gain is 3.7dBi in 6GHz, 4.4dBi in 5GHz and 2.0dBi in 2.4GHz
• Frequencybands: 2.400to2.4835GHzISM 5.150to5.250GHzU-NII-1 5.250to5.350GHzU-NII-2A 5.470to5.725GHzU-NII-2C 5.725to5.850GHzU-NII-3/ISM 5.925to6.425GHzU-NII-5 6.425to6.525GHzU-NII-6 6.525to6.875GHzU-NII-7 6.875to7.125GHzU-NII-8Note: The available bands and channels are dependent on the configured regulatory domain (country)
• Modulation technology: OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54MbpsDSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
• Modulation mode: 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM11be: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
• Maximum transmit power: 6G: 26dBm5G: 26dBm2.4G: 26dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations
• Adjustable power granularity: 1 dBm
• Reset/restoration to factory default: support
• Kensington Lock: support
• Installation: wall mounting/ceiling mounting
• LED: Alternating flashing mode, yellow/green/blue for different working states
• Temperature: Operating temperature: -10°C to +50°CStorage temperature: -40°C to +70°C
• Humidity: Operating humidity: 5% to 95% (non-condensing)Storage humidity: 5% to 95% (non-condensing)
• Protection class: IP41
• Overall power consumption — Power source — 6GHz MIMO — 5GHz MIMO — 2.4GHz MIMO — Link speed — PSE — power consumption
• 802.3at — 2*2 — 2*2 — 2*2 — 2.5G — N — 21.5W
• 802.3af — - — - — - — - — - — -
• DC — 2*2 — 2*2 — 2*2 — 2.5G — N — 21.5W
• Local power supply: ≤21.5WPoE powered: ≤21.5W (IEEE 802.3af)PoE+ powered: Not supported (IEEE 802.3at)
• MTBF（25°C）（hrs）: 1040998
• Safety Standards: IEC/EN 62368-1GB 4943.1
• EMC Standards — EN 301 489-1EN 301 489-3EN 301 489-17EN 60601-1-2EN 55032EN 55035 — CISPR 32CISPR 35AS/NZS CISPR32ICES-003 Issue 7GB/T 9254.1GB/T 9254.2GB 17625.1GB 17625.2 — IEC/EN 61000-4-2IEC/EN 61000-4-3IEC/EN 61000-4-4IEC/EN 61000-4-5IEC/EN 61000-4-6IEC/EN 61000-4-8IEC/EN 61000-4-11IEC/EN 61000-3-2IEC/EN 61000-3-3
• Radio Standards: ETSI EN 300 328ETSI EN 301 893, FCC Part 15E, ETSI EN 300 440ETSI EN 303 687
• RoHS Standards: DIRECTIVE 2011/65/EU(EU) 2015/863
• Health Standards: EN 50385:2017EN IEC 62311:2020
• MTBF (25°C): 2635665 hours
